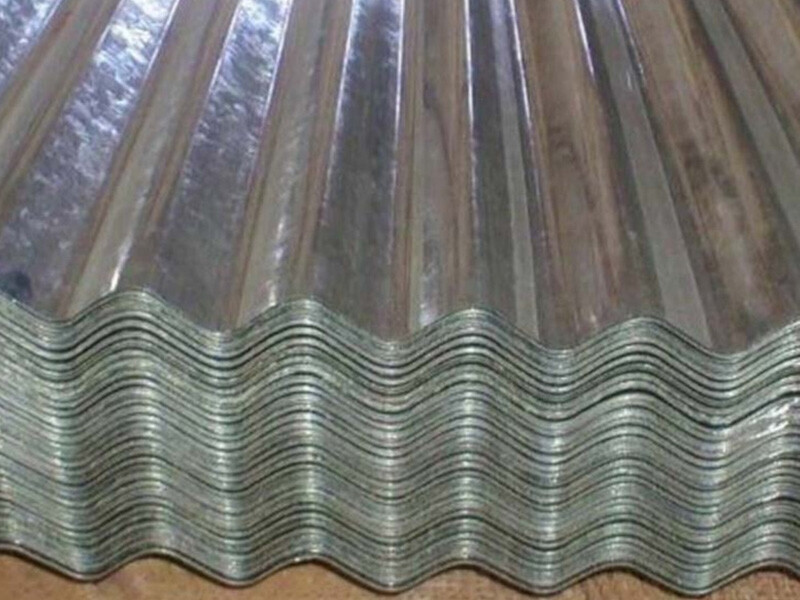

Galvalume Steel Corrugated Roof Sheet
Galvalume steel corrugated roof sheet is made of galvanized steel sheet used for roofing and coated with zinc. The zinc coating provides moisture and oxygen protection for the base steel. According to the galvanizing process, it can be divided into hot-dip galvanized steel plate and electro-galvanized steel plate. The corrugated design improves its strength and enable it to withstand harsh weather conditions.
Request A Sample
Product Description
Spot Warehouse
Product Packaging
Product Description Galvalume Steel Corrugated Roof Sheet

Galvalume steel corrugated roof sheet has designs of wavy, trapezoidal designs, ribbed galvanized roof panels, etc. It can be used as a single-layer board, covering an existing roof, or a steel sandwich panel. Galvalume sheet itself is more cost-effective than traditional roofing materials. In addition, it is light in weight and easy and quick to install. In addition, it is durable and recyclable and requires less maintenance. All these factors make galvalume steel corrugated roof sheet an economical choice. It has a bright and smooth surface. The corrugated design is also excellent from the outside. In addition, it has good adhesion, so you can paint it in different colors. Having a galvalume steel roof makes it easy to achieve aesthetic purposes.

Superior Corrosion Resistance

The aluminum layer makes the aluminized zinc steel have excellent corrosion resistance. When the zinc wears, the aluminum will form a dense aluminum oxide layer, preventing the corrosion-resistant substance from further corroding the interior. Therefore, the corrosion resistance of GL plate is 3 times that of galvanized plate. Under the same circumstances, the service life of GL roof panels is 2-6 times that of GI roof panels.

High Thermal Reflectivity

Its reflection coefficient is twice that of galvanized metal roof panels, which can reduce the indoor temperature in summer and reduce the power consumption of air conditioning. This feature makes it ideal for hot climates.

High Temperature Resistance

GL roofing sheet has good heat resistance and can withstand high temperatures above 300 degrees. Therefore, it can be used for a long time at high temperature.

Smooth Surface, Uniform Appearance

The aluminized zinc roof panels are smooth, silvery white with uniform sequins. It looks beautiful and can be used directly. Therefore, it is widely used for commercial and residential purposes.

Good Formability And Adhesion

The adhesion between the GL coating and the paint is good and easy to paint. In addition, it also has excellent formability. That is, punching, cutting, and the like are easy.



Product Parameters

Product Name

Galvalume Steel Corrugated Roof Sheet

Thickness

0.12mm-6.00mm

Width

600mm-1500mm

Length

1m-12m, Support Customization

Standard

AISI, ASTM, DIN, JIS, GB, JIS, SUS, EN, etc.

Thickness of Aluminum Zinc Coating

30-185g/m²

Content of Al-Zn Coating

 Al: 55%, Zn: 43.5%, Si: 1.5%

Chemical Composition
Mechanical Properties

Al

Zn

Si

Fe

Cu

Cd

Pb

Sn

Ni

Close Cr

55-58

41-43

1.5-2

0.25

0.03

0.05

0.01

0.05

0.05

0.05

Grade

Yield Strength MPa≥

Tensile Strength MPa≥

Elongation A%≥

DX51D Z/ZM/AZ/AM

240-380

270-500

22

DX52D Z/ZM/AZ/AM

140-300

270-420

26

DX53D Z/ZM/AZ/AM

140-260

270-380

30

DX54D Z/ZM/AZ/AM

120-220

260-350

36

S220GD Z/ZM/AM

220

300

20

S250GD Z/ZM/AZ/AM

250

330

19

S280GD Z/ZM/AM

280

360

18

S300GD A/AM

300

380

18

S320GD Z/ZM/AM

320

390

17

S350GD Z/ZM/AZ/AM

350

420

16

S450GD A/AM

450

480

15

S550GD Z/ZM/AZ/AM

550

550

-

APPLICATIONS &INDUSTRIES

Stock Warehouse-Galvalume Steel Corrugated Roof Sheet



Product Packaging-Galvalume Steel Corrugated Roof Sheet
