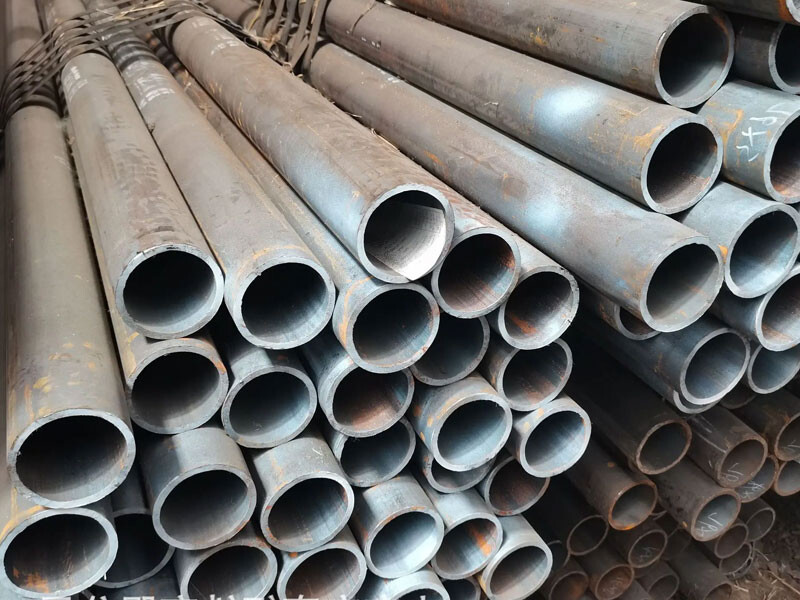

DIN 17175 Seamless Steel Pipe
DIN 17175 is a standard specification for seamless tubes of heat-resistant steels used in elevated temperatures and high-pressure environments.
Request A Sample
Product Description
Spot Warehouse
Product Packaging
Product Description DIN 17175 Seamless Steel Pipe

DIN 17175 standard covers a range of materials called heat-resistant steels, which are specifically developed to maintain their mechanical properties and structural integrity at elevated temperatures. These materials include various alloy and non-alloy steel grades, such as 15Mo3, 13CrMo44, 10CrMo910, and others.DIN 17175 pipes are intended for use in high-temperature and high-pressure environments, such as in boilers, pipelines, and heat exchangers. The standard outlines the requirements for dimensions, technical conditions, and mechanical properties of these tubes, ensuring their suitability and reliability in various industrial applications involving elevated temperatures.


Product Parameters

Product NameDIN 17175 Seamless Steel Pipe
StandardEN/DIN/JIS/ASTM/BS/ASME/AISI etc.
Outer DiameterSeamless: 1/4"-36"Welding: 21.3mm-3620mm
Round Tube: 1/2"-10"Square Tube/Rectangular Tube: 15x15mm-400x600mm
Wall ThicknessSeamless: 1.25mm-50mmWelding: 1.65mm-65mm
Length

3-12 meters, Support customization

Surface ProcessBright, Polished, Black
Other ServicesMachining(cnc), Centerless Grinding(cg), Heat Treatment, Annealing, Pickling, Polishing, Rolling, Forging, Cutting, Bending, Small Machining, etc.


Chemical Composition
Mechanical Properties

DIN  17175

C

Si

Mn

P

S

Ni

Cr

Mo

Others

St35.8

0.17 Max

0.10-0.35

0.40-0.80

0.040 Max

0.040 Max

-

-

-

-

St45.8

0.21 Max

0.10-0.35

0.40-1.20

0.040 Max

0.040 Max

-

-

-

-

17Mn4

0.14-0.20

0.20-0.40

0.90-1.20

0.040 Max

0.040 Max

-

0.30 Max

-

-

19Mn5

0.17-0.22

0.30-0.60

1.00-1.30

0.040 Max

0.040 Max

-

0.30 Max

-

-

15Mo3

0.12-0.20

0.10-0.35

0.40-0.80

0.035 Max

0.035 Max

-

-

0.25-0.35

-

13CrMo910

0.10-0.18

0.10-0.35

0.40-0.70

0.035 Max

0.035 Max

-

0.70-1.10

0.45-0.65

-

10CrMo910

0.08-0.15

0.50 Max

0.40-0.70

0.035 Max

0.035 Max

-

2.00-2.50

0.90-1.20

-

14MoV63

0.10-0.18

0.10-0.35

0.40-0.70

0.035 Max

0.035 Max

-

0.30-0.60

0.50-0.70

V: 0.22-0.32

X20CrMoV121

0.17-0.23

0.50 Max

0.40-0.70

0.030 Max

0.030 Max

0.30-0.80

10.00-12.50

0.80-1.20

V: 0.25-0.35

DIN  17175

Material No.

Minimum Yield Point MPa or N/mm2

Tensile Strength

WT: 16 mm Max

WT: 16-40 mm

St35.8

1.0305

235

225

360-480

St45.8

1.0405

-

245

410-530

17Mn4

1.0481

-

275

460-580

19Mn5

1.0482

-

315

510-610

15Mo3

1.5415

275

275

450-600

13CrMo910

1.7335

295

295

440-590

10CrMo910

1.7380

285

285

450-600

14MoV63

1.7715

325

325

460-610

X20CrMoV121

1.4922

490

490

690-850

APPLICATIONS &INDUSTRIES

DIN 17175 alloy steel pipe adopts heat-resistant pipe, which is suitable for high-pressure environment below 600 ℃. The application scope includes the construction of boilers, pipelines, pressure vessels and equipment.
Stock Warehouse-DIN 17175 Seamless Steel Pipe



Product Packaging-DIN 17175 Seamless Steel Pipe
